Scaffolding cuplock systems

Leading scaffolding cuplock systems manufacturers and suppliers

Sparsteel is one of UAE's largest and most qualified scaffolding cuplock systems manufacturers and suppliers deals in cuplock ledger, cuplock post, cuplock transom and cuplock standard and many more. Made with high grade steel tube conforming to EN 10219. It is the world's top used system scaffold.

It is proper galvanized multi-purpose steel scaffold system best for providing general access and supporting vertical loads. Our product is tested on various parameters to confirm its durability and performance, this type of scaffolding cuplock finds its wide applications at construction sites. Furthermore, the offered Scaffolding cuplock systems is available with us at very competitive price.

Related Products:

Send Us Enquiry

Fill in the form below, and we'll get back to you within 24 hours.

VERTICAL STANDARD(OPEN END)

Cuplock VERTICAL STANDARD
Made from 48.3mm diameter x 3.2mm thick high grade steel tube conforming to EN 10219,Standards(Vertical) are formed by two cups a fixed bottom cup which is welded to the standard (Vertical ) at pre-located intervals i.e. 500mm and a sliding top cup. The forged blade ends of the Ledger(Horizontal) are located into the bottom cup. The top cup is moved down and rotated to secure the components in place and tightened by a hammer blow to give a positive and rigid connection

Scaffolding LEDGER (HORIZONTAL)

Cuplock Scaffolding LEDGER
Made from 48.3mm diameter high grade steel tube conforming to EN10219 with forged steel blade ends, which locate into the bottom cups of the Standard(Vertical) and locked in place by the corresponding

INTERMEDIATE TRANSOM (HORIZONTAL)

Cuplock INTERMEDIATE TRANSOM
Made from 48.3mm diameter high grade steel tube conforming to EN10219. They rest upon the ledgers at right angles to reduce the span and provide extra support for boards. One end is provided with an integral locking device to prevent any movement along the ledgers during use.

BEAM BRACKET

Cuplock Scaffolding BEAM BRACKET
Beam Bracket are made from 48.3mm diameter high grade steel tube conforming to EN10219 and are used to provide support to beam formwork from also support standards with provision for accepting jacks or fork heads. It has a safe load carrying capacity of 1500 kgs.The beam bracket distributes the load throughout the surrounding cuplock system structure, thus reducing excessive strain on all components

TUBULAR HOP-UP BRACKETS

Cuplock TUBULAR HOP UP BRACKETS
Hop-up Bracket are made from 48.3mm diameter high grade steel tube conforming to EN10219 and are used to increase the width of working platform used in conjuction with transoms/intermediate transoms or inside-board transoms. They incorporate a cup joint at the outside end to allow the fitting of an inside ledger which links the hop-up brackets and supports transoms/intermediate transoms.

CANTILEVER FRAME

Cuplock CANTILEVER FRAME
This frame has ledger blades to be fitted into Cuplock standards at one end and with provision for accepting jacks in three positions at the other end at 1.2m,1.25m and 1.3m from centerline of the standard.

CANTILEVER BEAM FRAME

Cuplock CANTILEVER BEAM FRAM
Finish Available: Painted & Hot Dip Galvanized

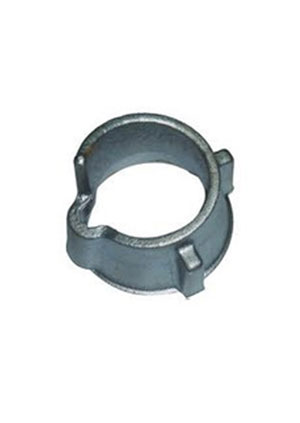

TOP CUP

Cuplock TOP-CUP
The captive mobile cups are made out of Drop Forged Iron to ensure rough site handling

BOTTOM CUP

Cuplock scaffolding Bottom Cup
Bottom cups are pressed from high quality steel and are welded on vertical.

LEDGER BLADE

Cuplock Scaffolding LEDGER BLADE
--

SPIGOT

Cuplock Spigot
Finish Available: Painted & Hot Dip Galvanized

HEAVY DUTY FEMALE TYPE CASTER WHEEL

Cuplock scaffolding porduct
Heavy Duty Female Type Caster Wheels used for Mobile Scaffolding made from Tube and Coupler Type Scaffolding 8 Inches Wheel Diameter and can takes load upto 1200 kg (12 kN) with Double stopper locks
Available: Rubber Tyred and Nylon Tyred

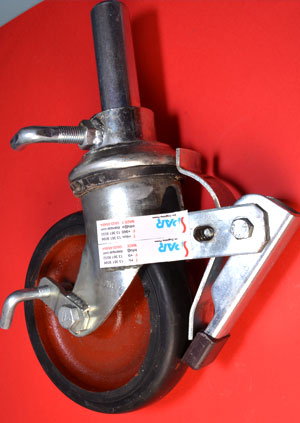

HEAVY DUTY MALE TYPE CASTER WHEEL

Cuplock HEAVY DUTY MALE TYPE CASTER WHEEL
Heavy Duty Male Type Caster Wheels used for Mobile Scaffolding made from System Scaffolding like Cuplock, Kwikstage, Ring Lock etc. 8 Inches Wheel Diameter and can takes load upto 1200 kg (12 kN) with Double stopper locks
Available: Rubber Tyred and Nylon Tyred

Frequently Asked Questions

The Cuplock scaffolding system may be a form of modular or systems scaffolding that consists principally of pre-engineered horizontal and vertical parts that mix in a very systematic manner to present its users with a short lived structure that proves extremely helpful in construction projects of the modern world.

Ledgers are 48mm diameter tubes with a forged wedge fixing device at every finish. they're positioned horizontally between 2 vertical scaffold standards to allow the length of the scaffold bay, at platform level. they'll even be fitted as a handrail.

Multiply 35 sq. feet by 25 pounds per sq ft and also the scaffolding may be loaded with no more than 875 pounds. 3 persons (estimated at 250 pounds) & 125 pounds of tools, materials & equipment may be applied to the scaffold.

System scaffolding, also known as modular scaffolding, comprises pre-engineered horizontal and vertical parts that are joined together in a certain order that makes it easy for users to use it to ascend and descend structures

Cuplock scaffolding could be a form of scaffolding characterised by a connection technique that uses metal cups to lock beams along. whereas many types of scaffolding exist, cuplock scaffolding is exclusive in this it provides the way to link four horizontal bars along quickly at a central joint

Multiply 35 sq. feet by 25 pounds per sq ft and also the scaffolding may be loaded with no more than 875 pounds. 3 persons (estimated at 250 pounds) & 125 pounds of tools, materials & equipment may be applied to the scaffold.
